n8n Integration

Use the CoreValue Chat Model node in n8n workflows to route LLM requests through the AI Gateway with full observability.

Introduction

The CoreValue Chat Model is a community node for n8n that provides a LangChain-compatible interface for AI workflows. Route requests to any LLM provider through the CoreValue AI Gateway.

This is an n8n community node that integrates seamlessly with n8n's AI chain functionality.

Prerequisites

An n8n account (see n8n installation docs for setup options)
A CoreValue API key (get one here)

Integration Steps

From your n8n interface:

Click the user menu (bottom left corner)
Select Settings
Go to Community Nodes
Click Install a community node
Enter the package name: n8n-nodes-corevalue
Click Install

Wait ~30 seconds for installation. The node will appear in your nodes panel.

Learn more about installing community nodes in the n8n documentation.

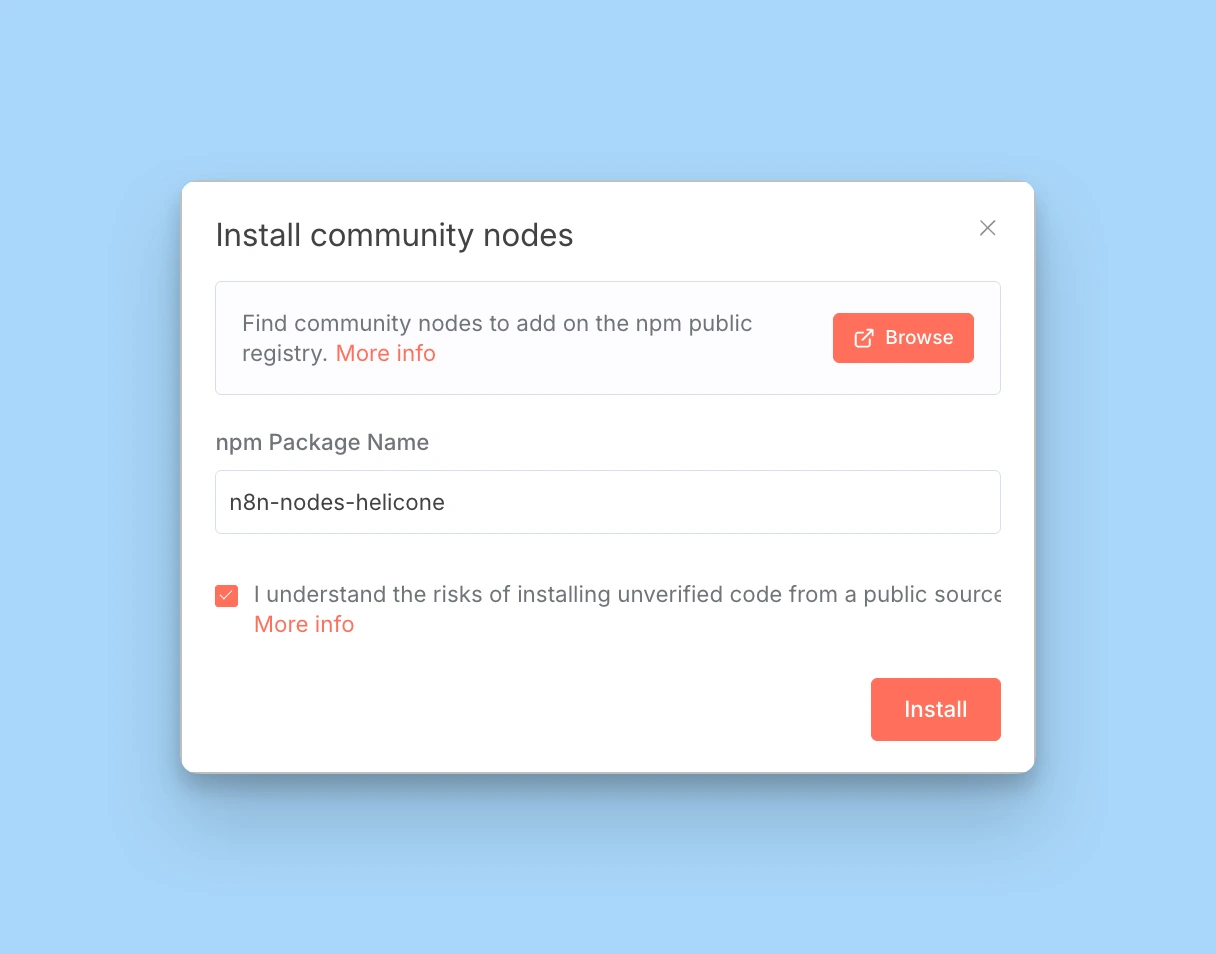

n8n install community node

Add your CoreValue API key to n8n:

Go to Settings → Credentials
Click Add Credential
Search for "CoreValue" and select CoreValue LLM Observability
Enter your CoreValue API key
Click Save

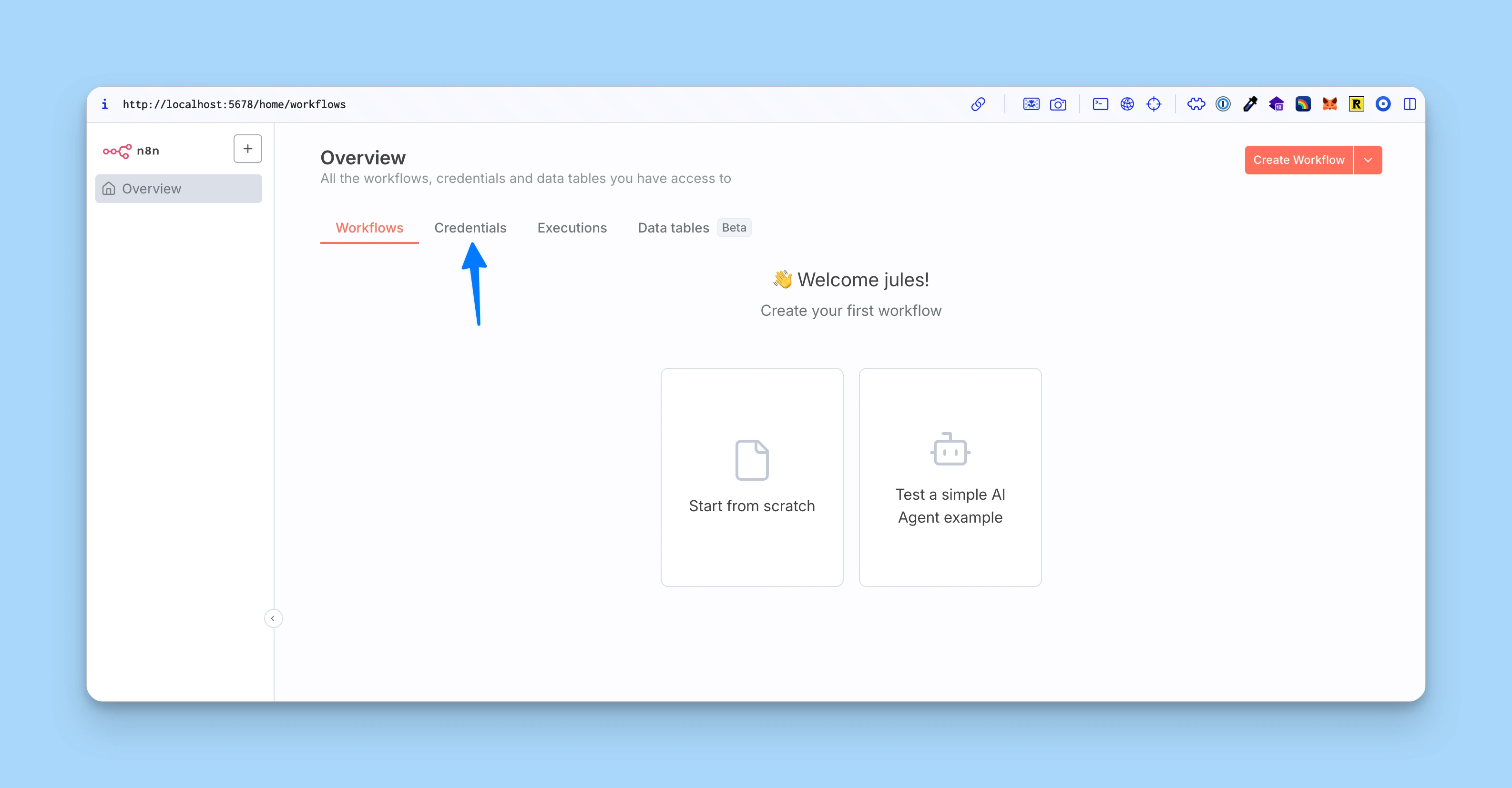

n8n credentials tab

Create a new workflow or open an existing one
Click "+" to add a node
Search for "CoreValue Chat Model"
Configure the node:
- Credentials: Select your saved CoreValue credentials
- Model: Choose any model from the model registry (e.g., gpt-4.1-mini, anthropic/claude-3-opus-20240229)
- Options: Configure temperature, max tokens, and other model parameters

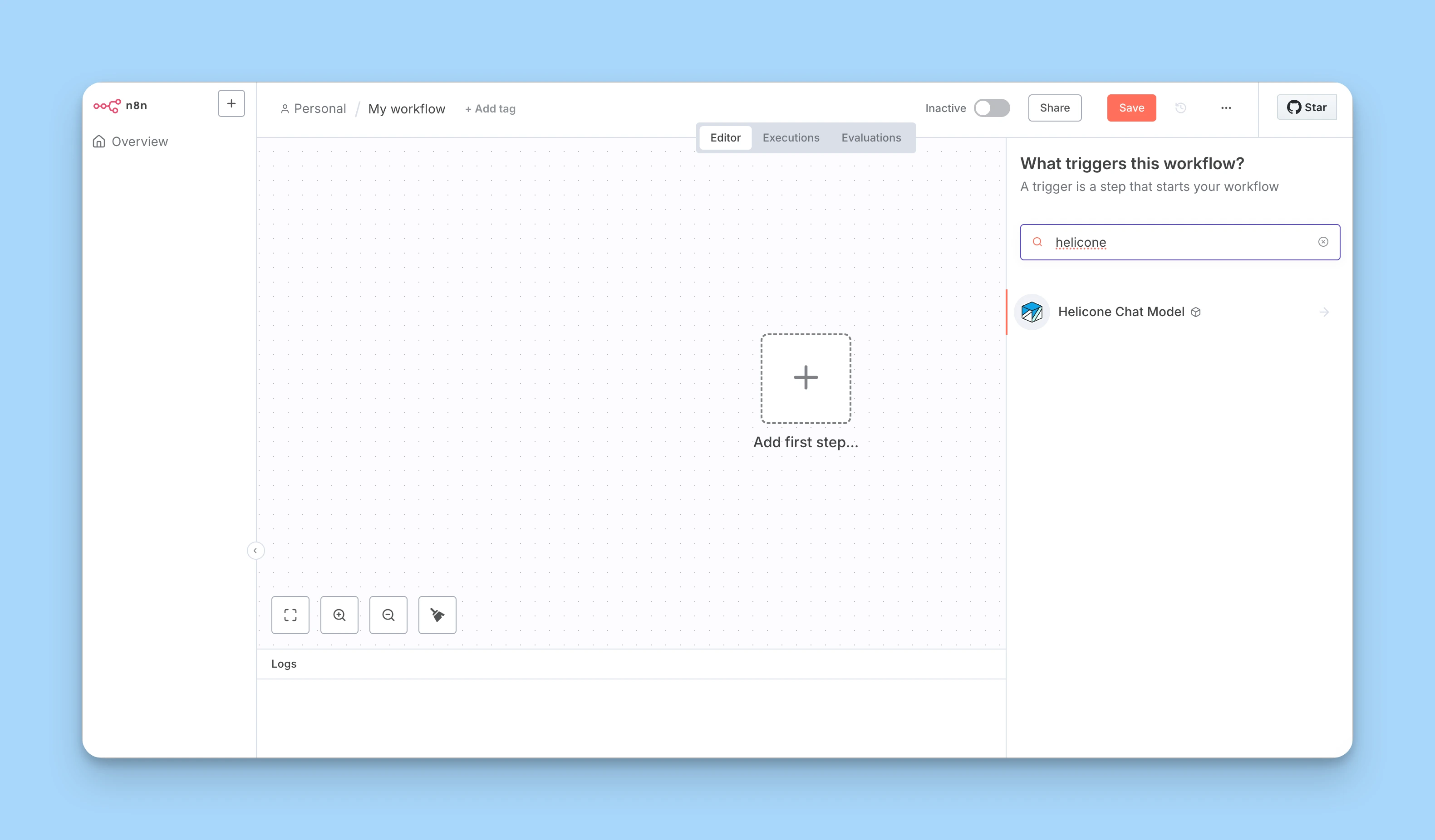

n8n search for CoreValue node

The CoreValue Chat Model node outputs a LangChain-compatible model that can be used with other AI nodes in n8n.

The CoreValue Chat Model node is designed to work with n8n's AI chain functionality:

Connect the node to other AI nodes that accept ai_languageModel inputs
Build complex AI workflows with Chat nodes, Chain nodes, and other AI processing nodes
All requests are automatically logged to CoreValue

Example workflow: Chat Input → CoreValue Chat Model → Chat Output

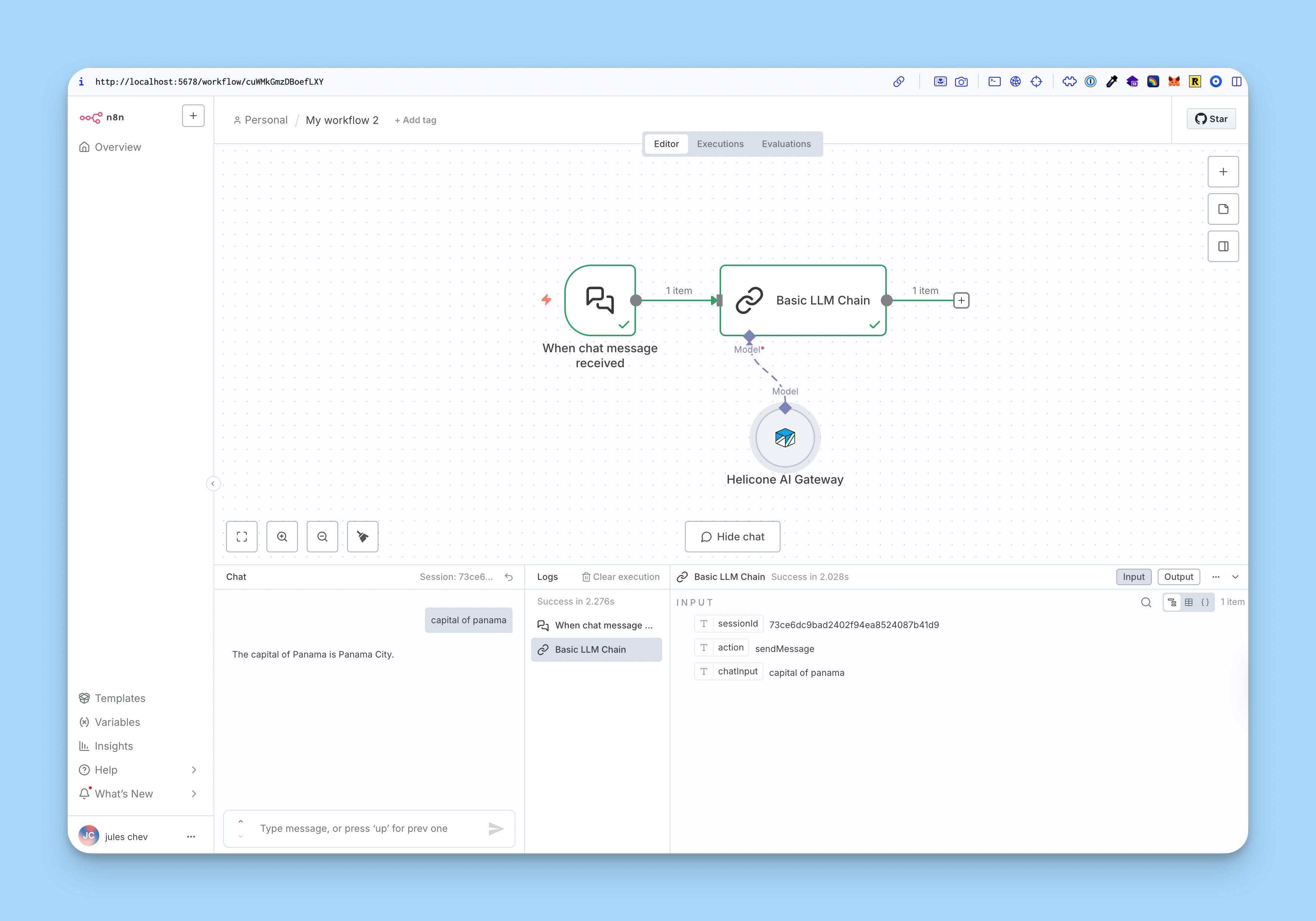

n8n workflow example

Open your CoreValue dashboard to see:

All workflow requests logged automatically
Token usage and costs per request
Response time metrics
Full request/response bodies
Session tracking for multi-turn conversations
Custom properties for filtering and analysis

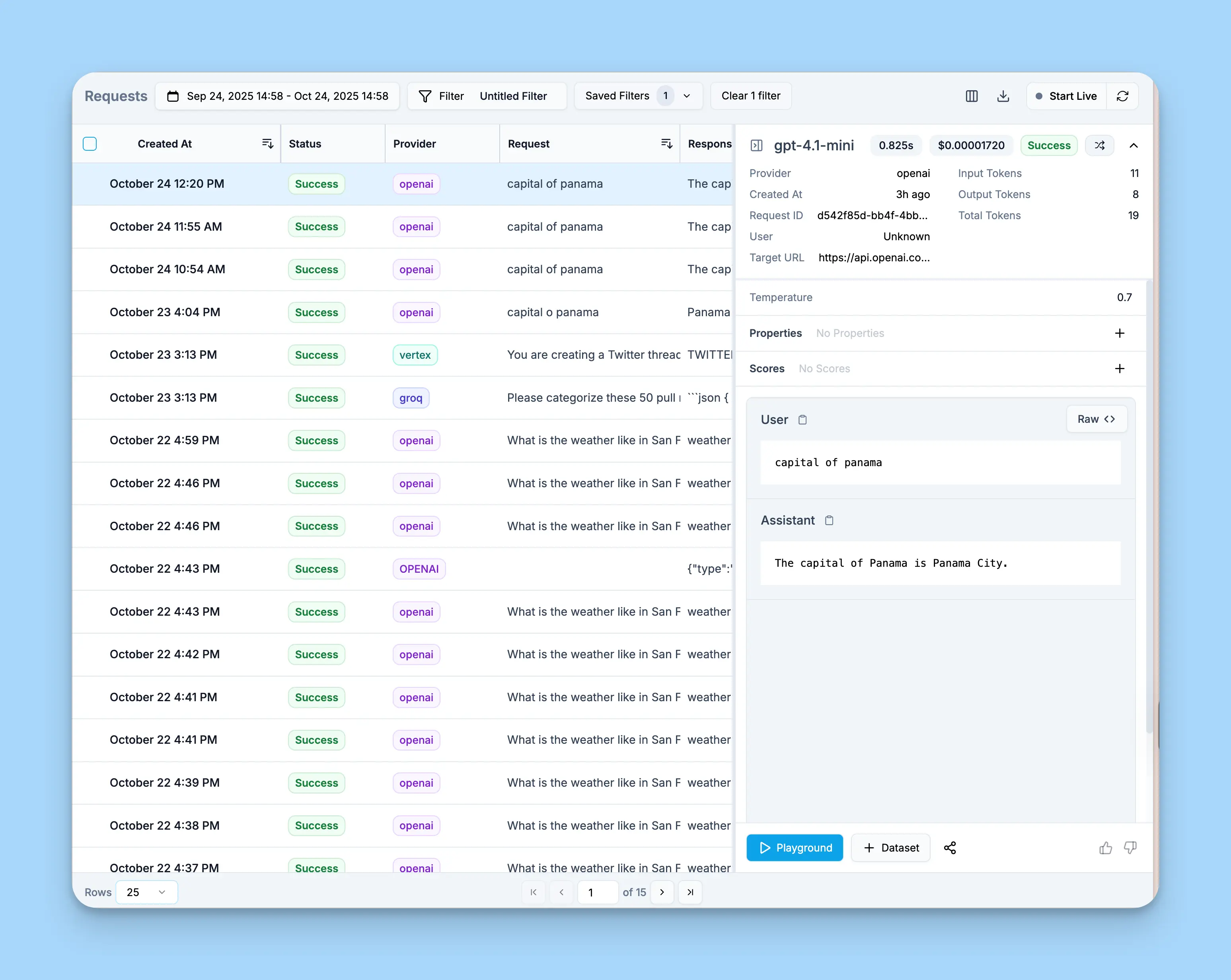

CoreValue dashboard verification

While you're here, why not give us a star on GitHub? It helps us a lot!

Node Configuration

Required Parameters

Model: Any model supported by CoreValue AI Gateway. Examples: gpt-4.1-mini, anthropic/claude-opus-4-1, google/gemini-2.5-flash-lite. See all models in the CoreValue's model registry

Model Options

Temperature (0-2): Controls randomness in responses
Max Tokens: Maximum tokens to generate
Top P (0-1): Nucleus sampling parameter
Frequency Penalty (-2 to 2): Reduces repetition
Presence Penalty (-2 to 2): Encourages new topics
Response Format: Text or JSON
Timeout: Request timeout in milliseconds
Max Retries: Number of retry attempts on failure

Example Workflows

Basic Chat Workflow

[Chat Input] → [CoreValue Chat Model] → [Chat Output]

Add a Chat Input node (triggers on user message)
Add the CoreValue Chat Model node
- Model: gpt-4.1-mini
- Temperature: 0.7
Add a Chat Output node to display the response

Multi-Step AI Chain

[Webhook] → [CoreValue Chat Model] → [Extract Data] → [CoreValue Chat Model] → [Response]

Receive data via webhook
First CoreValue Chat Model analyzes the input
Extract structured data
Second CoreValue Chat Model generates a response
Both requests appear in CoreValue dashboard with session tracking

Workflow with Custom Properties

Configure the node with custom properties to track workflow metadata:

Open the CoreValue Chat Model node
Expand CoreValue Options → Custom Properties
Add a JSON object:

{
  "workflow_name": "customer-onboarding",
  "environment": "production",
  "version": "2.1.0"
}

All requests from this node will include these properties in CoreValue.

Troubleshooting

Node Installation Issues

Node not appearing: Wait 30 seconds after installation, then refresh n8n
Installation failed: Check your n8n instance has internet access
Version conflicts: Ensure you're running a compatible n8n version (>= 1.0)

Authentication Errors

Invalid API key: Verify your CoreValue API key starts with sk-cova-
403 Forbidden: Ensure your API key has write access enabled
Provider not configured: Check the name of the model is exactly the model ID expected by the gateway. If you've added your own provider keys, make sure they are correctly set in your CoreValue dashboard

Model Errors

Model not found: Check the exact model name at CoreValue's model registry
Model unavailable: Verify provider access in your CoreValue account
Different naming: Providers use different conventions (e.g., OpenAI uses gpt-4o-mini, while the gateway uses gpt-4.1-mini)
